Regulation of Optical and Electrical Properties of Thin Films by Different Indium-Tin Ratios (e.g., In₂O₃:SnO₂ = 90:10) and Their Applicability to Display Technologies (e.g., OLED, LCD)

Abstract

The ratio of indium oxide (In₂O₃) to tin oxide (SnO₂) in indium tin oxide (ITO) significantly influences the optoelectronic properties of ITO thin films. Studies show that: (1) at an In₂O₃:SnO₂ ratio of 90:10, the thin films achieve a transmittance exceeding 85% and resistivity below 2×10⁻⁴ Ω·cm; (2) varying the In/Sn ratio optimizes the balance between conductivity and transparency, making the films suitable for various display technologies; (3) in OLED applications, optimized In/Sn ratios enhance anode conductivity, thereby improving electroluminescent efficiency; (4) in LCDs, the balance between transparency and conductivity is critical to meet requirements for high resolution and low power consumption. These characteristics establish ITO as a key material in modern display technologies.

1. Composition and Characteristics of Indium Tin Oxide (ITO) Thin Films

Indium tin oxide (ITO) is an n-type semiconductor widely used in optoelectronics due to its excellent electrical conductivity and high optical transparency. Adjusting the ratio of In₂O₃ to SnO₂ markedly affects its optoelectronic properties. The following discusses the effects of different ratios on thin film characteristics and their applications in display technologies.

1.1 Material Composition and Structure

• Influence of In₂O₃:SnO₂ ratio:

  A typical ratio is 90:10, at which the ITO crystal structure remains stable with high crystallinity, favoring electron transport.

  Increasing SnO₂ content (e.g., 80:20) may introduce excessive defect states, raising resistivity, while lower SnO₂ ratios (e.g., 95:5) may insufficiently supply free electrons, reducing carrier concentration.
• Carrier concentration and mobility:

  At an optimal ratio such as 90:10, carrier concentration reaches approximately 10²¹ cm⁻³ with electron mobility around 30–40 cm²/V·s.

  The presence of Sn contributes additional free electrons, enhancing conductivity.

2. Regulation and Optimization of Optoelectronic Properties

2.1 Trade-off Between Transparency and Conductivity

• Optical transmittance:

  ITO films exhibit excellent transparency in the visible spectrum (400–700 nm), with transmittance exceeding 85% at the 90:10 ratio.

  High transparency is particularly vital for OLED displays, ensuring effective light transmission through glass substrates while minimizing energy loss.
• Resistivity:

  Low resistivity (<2×10⁻⁴ Ω·cm) is a key indicator of high-quality ITO, enabling faster charge transport and lower power consumption.

  Resistivity also correlates with film thickness; increasing thickness reduces resistivity but may compromise transparency.

2.2 Effects of Thermal Treatment and Surface Flatness

• Thermal treatment:

  Annealing above 600°C improves crystal quality and reduces resistivity, though excessive temperatures may warp glass substrates.
• Surface flatness:

  Surface roughness must be controlled below the nanometer scale to ensure uniform light passage and minimize scattering losses, crucial for enhancing OLED efficiency.

3. Applications of ITO Thin Films in Display Technologies

3.1 Role in OLED Displays

• Anode material:

  ITO serves as the anode, its high conductivity facilitating efficient charge injection into the emissive layer, thereby improving overall electroluminescent efficiency.

  Superior transparency ensures maximal light emission through the anode.
• Challenges in OLED fabrication:

  Strict control of ITO surface conditions and work function (typically >4.5 eV) is necessary to maintain energy band continuity at the organic interface.

3.2 Application in LCDs

• Electrode function:

  ITO electrodes influence liquid crystal molecular orientation via electric fields, controlling light transmission and blocking.

  High-quality ITO films significantly reduce operating voltage, enhancing LCD response speed and lowering power consumption.
• Transparency and contrast:

  Transparency directly affects color reproduction and contrast; high transmittance supports higher brightness and color uniformity.

4. Technical Challenges and Future Development Trends

4.1 Optimization and Innovation Directions

• Advanced sputtering techniques:

  Developing novel sputtering methods (e.g., High Power Pulsed Magnetron Sputtering, HPPMS) to improve film quality and deposition rates.
• Alternative materials development:

  Research into zinc aluminum oxide (AZO), silver nanowires, and other transparent conductive materials to address the limited availability of indium.

4.2 Sustainability in Production Processes

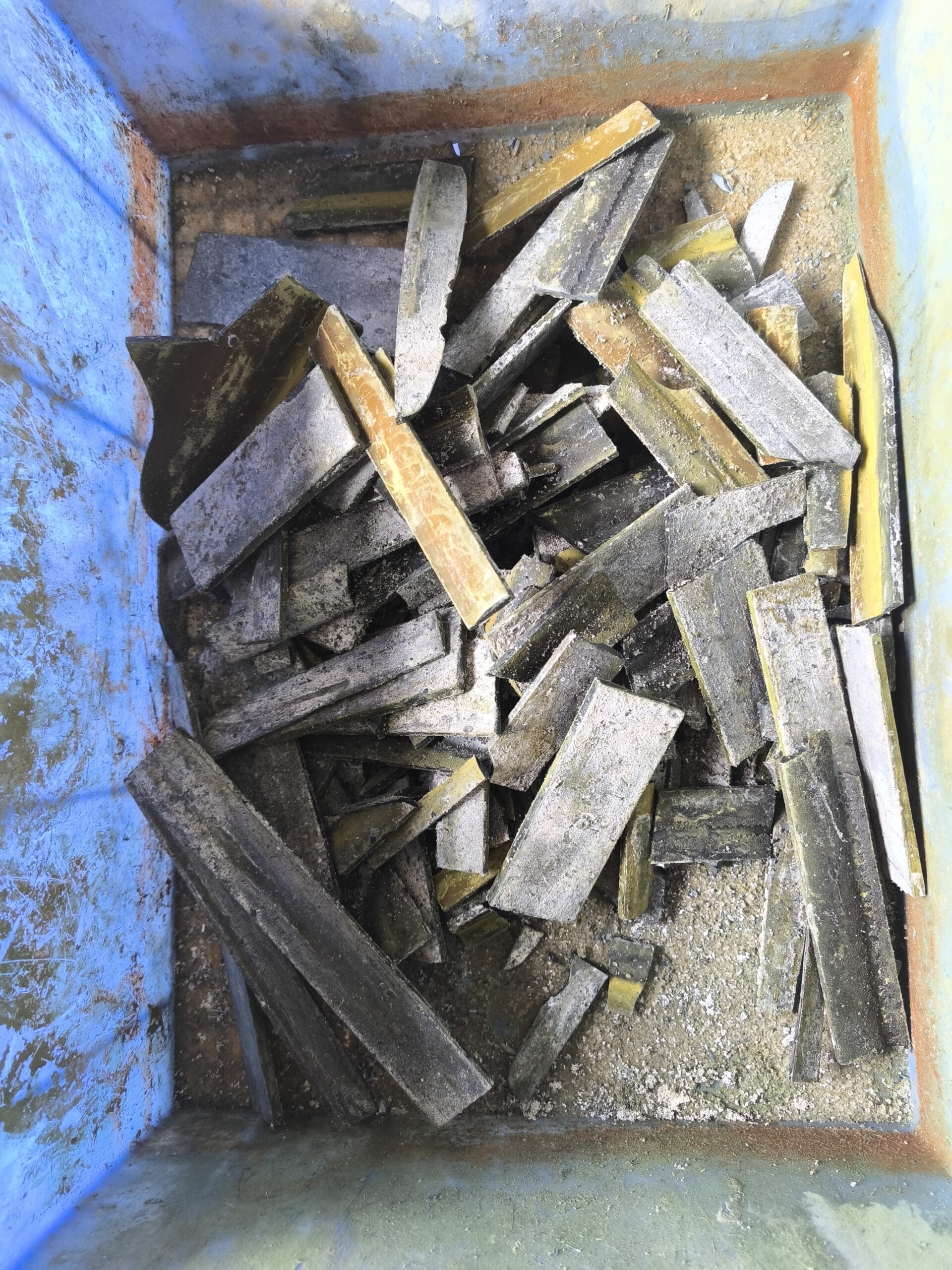

• Resource conservation and recycling:

  Given the scarcity of indium, process improvements and material recycling are essential for sustainable industry development.
• Environmentally friendly processes:

  Implementing green chemistry and low-energy technologies to reduce environmental impact during production.

4.3 Market Applications and Trend Forecast

• Market expansion:

  With widespread adoption of OLED, LCD, and emerging flexible displays, demand for ITO films is expected to grow steadily.
• Competitive advantages from technology progress:

  Continuous advancements will deliver superior optoelectronic performance and drive display technologies toward higher resolution and lower power consumption.

Conclusion

Adjusting the indium-to-tin ratio, particularly the 90:10 configuration, effectively optimizes the optoelectronic performance of ITO films, positioning them as crucial components in OLED and LCD display technologies. Future integration of new materials and environmentally sustainable processes will help maintain ITO’s pivotal role in transparent conductive films, supporting the ongoing evolution of modern display technologies.
